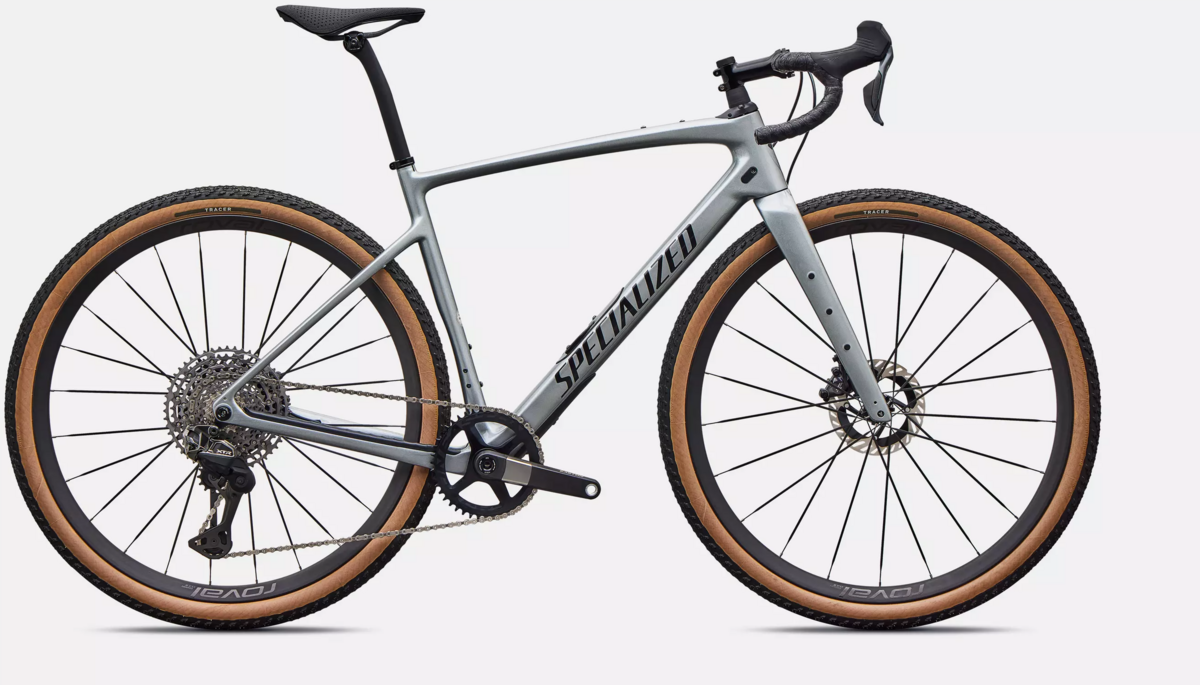

Specialized Diverge 4 Pro LTD

Specialized Diverge 4 Pro LTD
  • Color: Gloss Shadow Silver / Obsidian Metallic
$10,000.00
Color: Gloss Shadow Silver / Obsidian Metallic
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Order now and pick up in-store for free

Details

The Ultimate Getaway Vehicle
Race tuned and adventure approved. The Diverge 4 gravel bike is built for full gas race days and off-grid epics. With Future Shock 3.0 suspension, our most responsive frame ever, massive tire clearance, and the biggest internal storage in gravel, the best gravel bike in the world just got better. Chase the horizon, or your rivals. It is built for both.

At a Glance
- Use: Gravel Adventure/Race
- Frameset/Suspension: FACT 9r Carbon / Future Shock 3.3
- Limited: Only 150 units worldwide
- Drivetrain: Shimano GRX/XTR & Easton EC90
- Wheels: Roval Terra CLX III
- Weight: 8.5kg / 18lb, 11.83oz

Frame Size49cm52cm54cm56cm58cm61cm
Crank Length (mm)165170172.5172.5175175
Handlebar Width (mm)380400420420440440
Stem Length (mm)607080909090
Saddle Width (mm)155155143143143143
Seatpost Length (mm)330330380380380380
Stack (mm)563578592610634659
Reach (mm)365374387400412425
Head Tube Length (mm)90104116135161187
Head Tube Angle (°)70.070.571.071.071.071.0
Bottom Bracket Drop (mm)858585858585
Trail (mm)726865656565
Fork Length, Full (mm)391391391391391391
Fork Rake/Offset (mm)555555555555
Front Center (mm)604613626645665686
Chainstay Length (mm)430430430430430430
Wheelbase (mm)101910311041106010811102
Top Tube Length, Horizontal (mm)521537556575593613
Standover Height (mm)700725754779805832
Seat Tube Length (mm)400430470500530560
Seat Tube Angle (°)74.574.074.074.074.074.0

Frame SizeRider Height (cm)Rider Height (in.)
44cm142–1524'8"–5'0"
48cm152–1635'0"–5'4"
50cm158–1635'2"–5'4"
52cm163–1705'4"–5'7"
54cm170–1785'7"–5'10"
56cm175–1805'9"–5'11"
58cm180–1885'11"–6'2"
61cm188–1966'2"–6'5"
64cm196–2056'5"–6'9"

* Sizing is intended as a guide. If you are between sizes, consider your riding style and preference.

Specs

Bottom Bracket Easton Bottom Bracket, BSA 68
Chainrings 40t
Frame Specialized Diverge FACT 9r carbon, SWAT Door integration, Future Shock suspension, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc, UDH dropout
Fork Future Shock 3.3 w/ Smooth Boot, FACT Carbon 12x100mm, thru-axle, flat-mount disc
Wheels Front: Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5mm depth, Roval LF18-F hub, 21h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)
Rear: Roval Terra CLX III, Tubeless, 27mm internal width carbon rim, 25.5mm depth, Roval LF19-R hub, 24h, Roval by ARRIS Composite Straight Pull Spokes (Ti end fittings)
Tires Tracer TLR All Terrain Gravel Tire, 700x50c, Tubeless Ready
Crankset Easton EC90 ALX, 40t chainring, 4iiii power meter
Shifters Shimano GRX Di2 ST-RX825
Rear Derailleur Shimano XTR Di2 RD-M9250, 12-speed
Cassette/Freewheel Shimano XTR CS-M9200, 12-speed, 10-51t
Chain Shimano XTR CN-M9100
Brakes Shimano GRX BR-RX820, hydraulic disc
Handlebars Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Stem S-Works SL, alloy, titanium bolts, 6-degree rise
Seatpost Roval Terra Carbon Seat Post, 20mm Offset
Saddle S-Works Power with Mirror
Pedals Sold Separately
Accessories & Extras SWAT 4.0 internal downtube storage

* Subject to change without notice.

Part Numbers

Option UPC MPN
Gloss Shadow Silver / Obsidian Metallic / 52cm / 700c 196625299933 95427-1152
Gloss Shadow Silver / Obsidian Metallic / 54cm / 700c 196625299988 95427-1154
Gloss Shadow Silver / Obsidian Metallic / 58cm / 700c 196625299957 95427-1158
